VERTICAL TIG CLADDING
Advanced Vertical TIG Cladding Machine for Precision Surface Protection

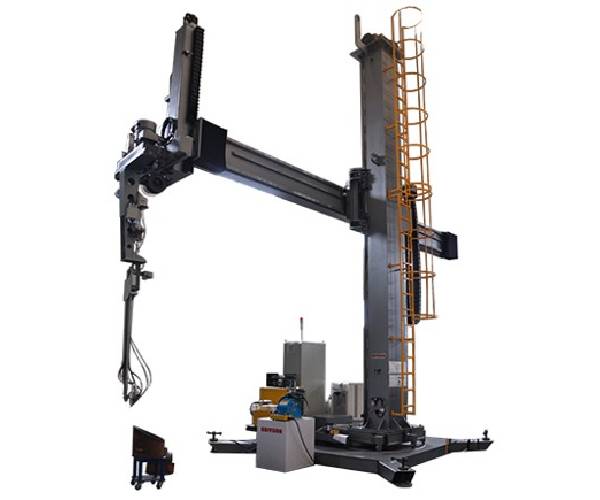

The Vertical TIG Cladding Machine is an advanced system designed for high-precision cladding of internal and external surfaces of pipes, tubes, and cylindrical components. Using the Tungsten Inert Gas (TIG) welding process, it delivers defect-free, corrosion-resistant, and wear-resistant layers with excellent metallurgical bonding.
The vertical design allows uniform cladding along the vertical axis of the workpiece, making it ideal for pressure vessels, pipelines, heat exchangers, and chemical processing equipment. Automation ensures consistent layer thickness, precise deposition, and minimal dilution, while reducing manual labor and improving operator safety.
The Vertical TIG Cladding Machine enhances productivity and ensures repeatable weld quality for critical industrial applications where precision and durability are essential.
Key Features

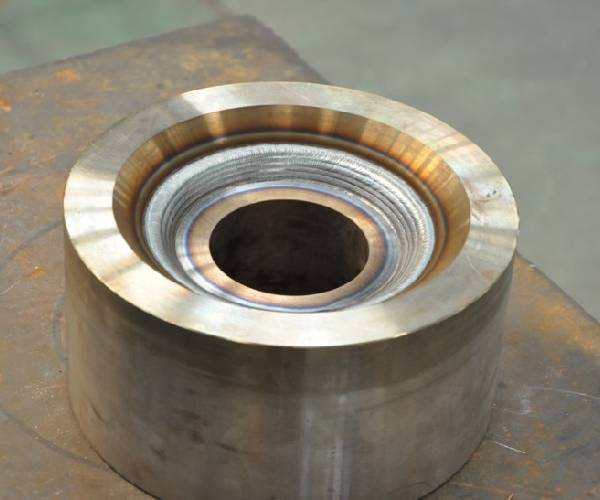

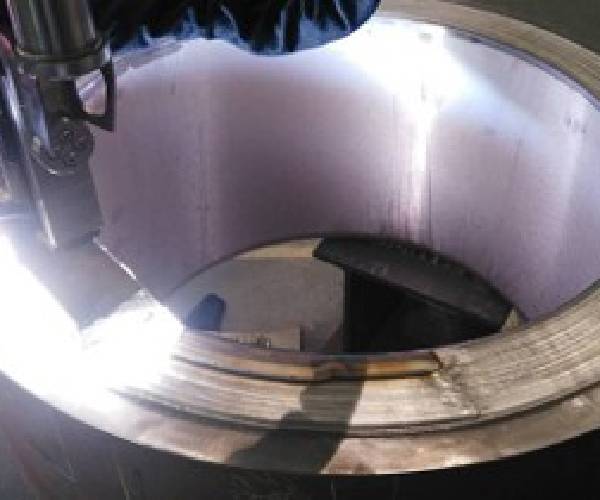

- The installation is for internal vertical hole or valve line automatic cladding. Cold TIG/hot wire TIG welding processes.
- Provides high-quality, low-dilution cladding with excellent metallurgical properties.
- Servo or hydraulic-controlled torch travel for precise deposition along the workpiece.
- User-friendly interface for programming parameters, monitoring deposition, and adjusting in real-time.
SPECIFICATION
- The installation is for internal vertical hole or valve line automatic cladding. Cold TIG/hot wire TIG welding processes.
- Cladding hole diameter: ɸ50~800mm.
- Cladding depth:1000mm.
- Cone angle: 45°or 60°.
- AVC tracking and shutdown memory function.
Frequently Asked Questions
What you should know
What is Vertical TIG Cladding (VTC) machine used for?
Vertical TIG Cladding (VTC) is used for depositing corrosion-resistant and wear-resistant alloy layers on internal and external cylindrical surfaces such as pipes, tubes, valves, and pressure vessels using the TIG welding process. It ensures strong metallurgical bonding and high-precision overlay.
Which industries commonly use Vertical TIG Cladding machines?
Vertical TIG Cladding machines are widely used in industries like oil & gas, petrochemical, power generation, chemical processing, and heavy engineering, where components require high resistance to corrosion, heat, and wear.
What materials can be used in Vertical TIG Cladding?
VTC systems can work with a variety of filler materials such as stainless steel, Inconel alloys, nickel-based alloys, cobalt-based alloys, and other corrosion-resistant welding wires depending on application requirements.
What are the advantages of Vertical TIG Cladding over manual welding?
Vertical TIG Cladding offers higher precision, consistent weld quality, low dilution rates, better surface finish, and improved productivity compared to manual welding. It also reduces operator dependency and ensures repeatable results.
What is the typical cladding size range in VTC systems?
Vertical TIG Cladding machines are designed to handle different internal diameters and depths, typically suitable for medium to large cylindrical components, with adjustable configurations depending on the machine model and application.
Why is vertical configuration important in TIG cladding?
The vertical setup allows controlled deposition of weld material along the axis of the workpiece, improving uniformity, reducing defects caused by gravity effects, and ensuring stable cladding quality in deep or internal surfaces.
