90 DEG ELBOW CLADDING
Precision Cladding Solution for 90-Degree Pipe Elbows

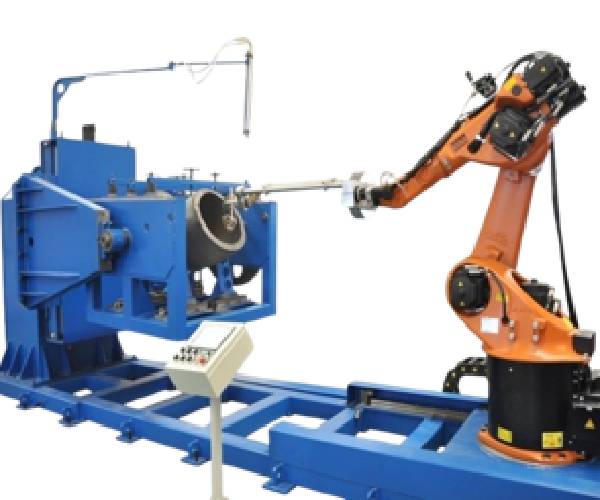

The 90° Elbow Cladding Machine is a specialized system designed to apply a corrosion-resistant or wear-resistant cladding layer on the internal or external surfaces of 90-degree pipe elbows. These elbows are commonly used in oil & gas, petrochemical, power, and chemical industries, where elbows experience high wear, erosion, or corrosion due to fluid flow.
Cladding these elbows is challenging due to their curvature and geometry. This machine provides precise torch positioning, controlled rotation, and consistent layer deposition, ensuring uniform thickness, minimal dilution, and high metallurgical quality. Automation reduces operator dependency and increases production efficiency.
Key Features

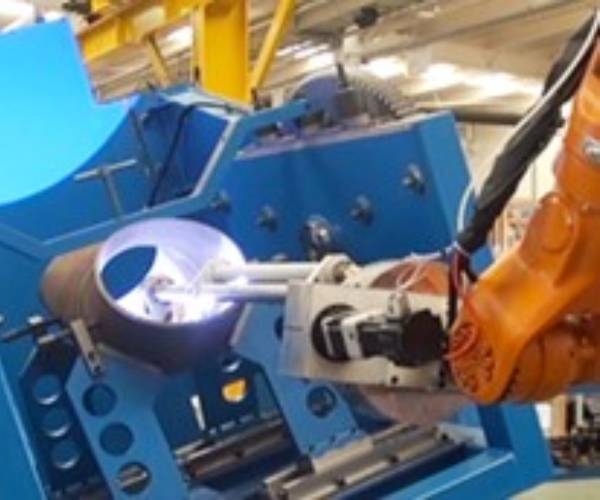

- Precision torch positioning — motorized torch head follows the internal curvature of the 90° elbow for consistent contact angle and arc length throughout the weld path.

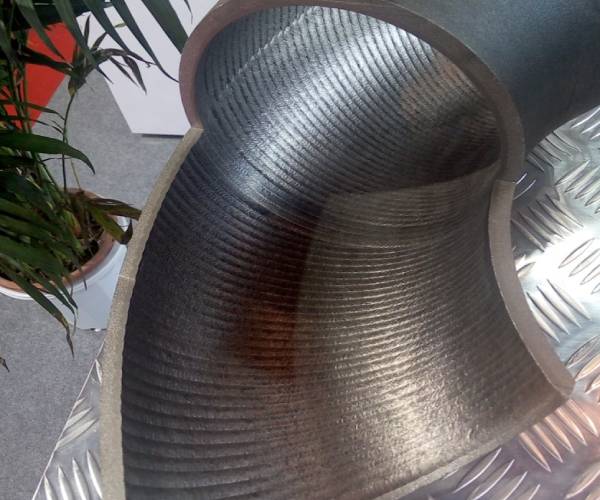

- Controlled rotational welding — synchronized rotation of the elbow and torch travel ensures uniform, overlapping weld beads across the full internal (or external) surface.
- Uniform cladding thickness — programmable deposition parameters (current, wire feed, travel speed) maintain a consistent overlay layer with minimal dilution and high metallurgical bond quality.
- Automated cycle control — PLC/HMI-based control reduces operator dependency, improves repeatability, and increases production throughput compared to manual cladding.
- Consistent quality output — minimizes weld defects (porosity, lack of fusion, uneven overlay) that are common with manual cladding of curved surfaces.
Frequently Asked Questions
What you should know
What is 90° elbow cladding?
90° elbow cladding is a protective covering designed to fit over pipe elbows that change direction at 90 degrees. It helps protect insulation from moisture, corrosion, UV exposure, and mechanical damage while maintaining thermal efficiency in piping systems.
Where is 90 degree elbow cladding used?
It is widely used in industrial piping, HVAC systems, insulation projects, oil & gas pipelines, and chemical plants. It is especially useful for protecting insulated pipe bends in outdoor and high-temperature environments.
What materials are used in elbow cladding?
90° elbow cladding is commonly manufactured using aluminum (stucco or plain finish), stainless steel, or pre-coated metal sheets. These materials provide durability, weather resistance, and long service life in harsh environments.
What are the benefits of using elbow cladding?
Elbow cladding improves insulation performance, reduces heat loss, protects against corrosion and UV damage, enhances system lifespan, and provides a neat, professional finish to pipe installations.
Is 90° elbow cladding suitable for outdoor applications?
Yes, it is specifically designed for outdoor and exposed piping systems. Its weather-resistant materials ensure protection against rain, sunlight, dust, and temperature variations.
