4-Axis NC Saddle Welder

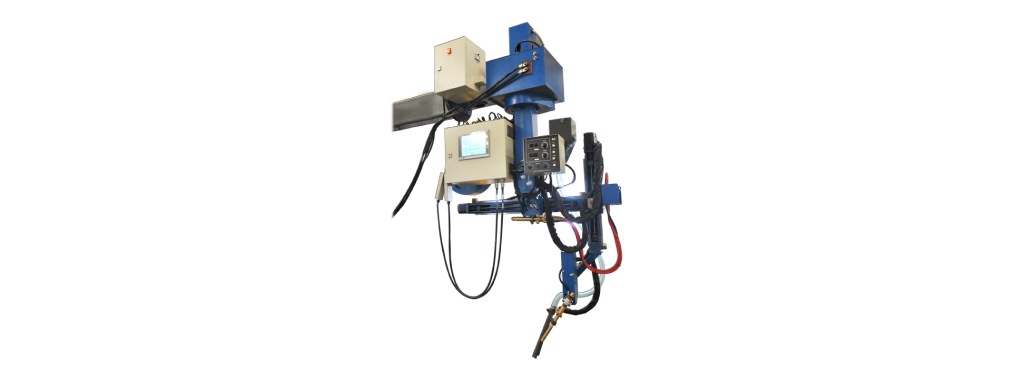

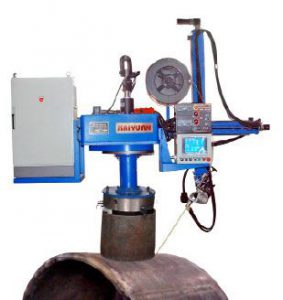

Advanced 4-Axis NC Saddle Welder for Precision Pipe Fabrication
The 4-Axis NC Saddle Welder is an advanced automated system designed for precise cutting and welding of saddle connections on pipes and cylindrical components. Utilizing numerical control (NC) with four-axis motion, this machine provides high-accuracy saddle preparation and weld deposition for industrial piping systems.
It is widely used in oil & gas, petrochemical, chemical, and power generation industries, where consistent quality, repeatable accuracy, and reduced fabrication time are critical. The four-axis design allows simultaneous control of rotation, positioning, and welding movement, ensuring optimal fit-up and superior weld quality.
Key Features
- For pipe or cap seal orthogonal or slanting nozzle saddle shape intersection line automatic submerged arc welding.
- Enables precise movement along multiple axes for accurate saddle positioning and welding.
- Produces accurate cut profiles for branch connections with minimal manual intervention.
- Supports TIG, MIG, or SAW welding for joining main and branch pipes efficiently
SPECIFICATION
- Nozzle flange nozzle(OD): ɸ400~1600mm.
- Pipe diameter(ID): ɸ500~6000mm.
- Max. thickness: ≤300mm.
- Nozzle height: 300~700mm.
- Flange joint type: butt joint, insert, semi-insert, mount type.
Related Products
Frequently Asked Questions
What you should know
What is a 4 Axis NC Saddle Welder?
A 4 Axis NC Saddle Welder is a cutting-edge welding system that uses numerical control to automate the welding of nozzles, saddle joints, and flange nozzles on various vessels and shells. This technology ensures precise movement and delivers consistent welding quality, making it ideal for industrial applications.
What are the applications of a 4 Axis NC Saddle Welder?
The 4 Axis NC Saddle Welder is mainly used for welding applications in pressure vessels, boilers, tanks, shells, domes, and heavy fabrication industries where accurate nozzle welding is required.
How does a 4 Axis NC Saddle Welder improve welding productivity?
This automatic welding machine boosts productivity by cutting down on manual work, ensuring consistent welding settings, and speeding up the welding process compared to traditional manual methods.
What type of welding process is used in a 4 Axis NC Saddle Welder?
The machine commonly uses the Submerged Arc Welding (SAW) process, which helps achieve deep penetration, strong weld joints, and high-quality results for heavy-duty fabrication work.
What are the key benefits of using a CNC saddle welding machine?
A CNC saddle welding machine offers benefits such as accurate torch positioning, repeatable welding results, reduced defects, improved efficiency, and better control over complex welding operations.
Why choose Kaiyuan 4 Axis NC Saddle Welder?
Kaiyuan’s 4 Axis NC Saddle Welder is designed with automation technology, user-friendly controls, and precision welding capabilities to support reliable nozzle welding for industrial manufacturing needs.
