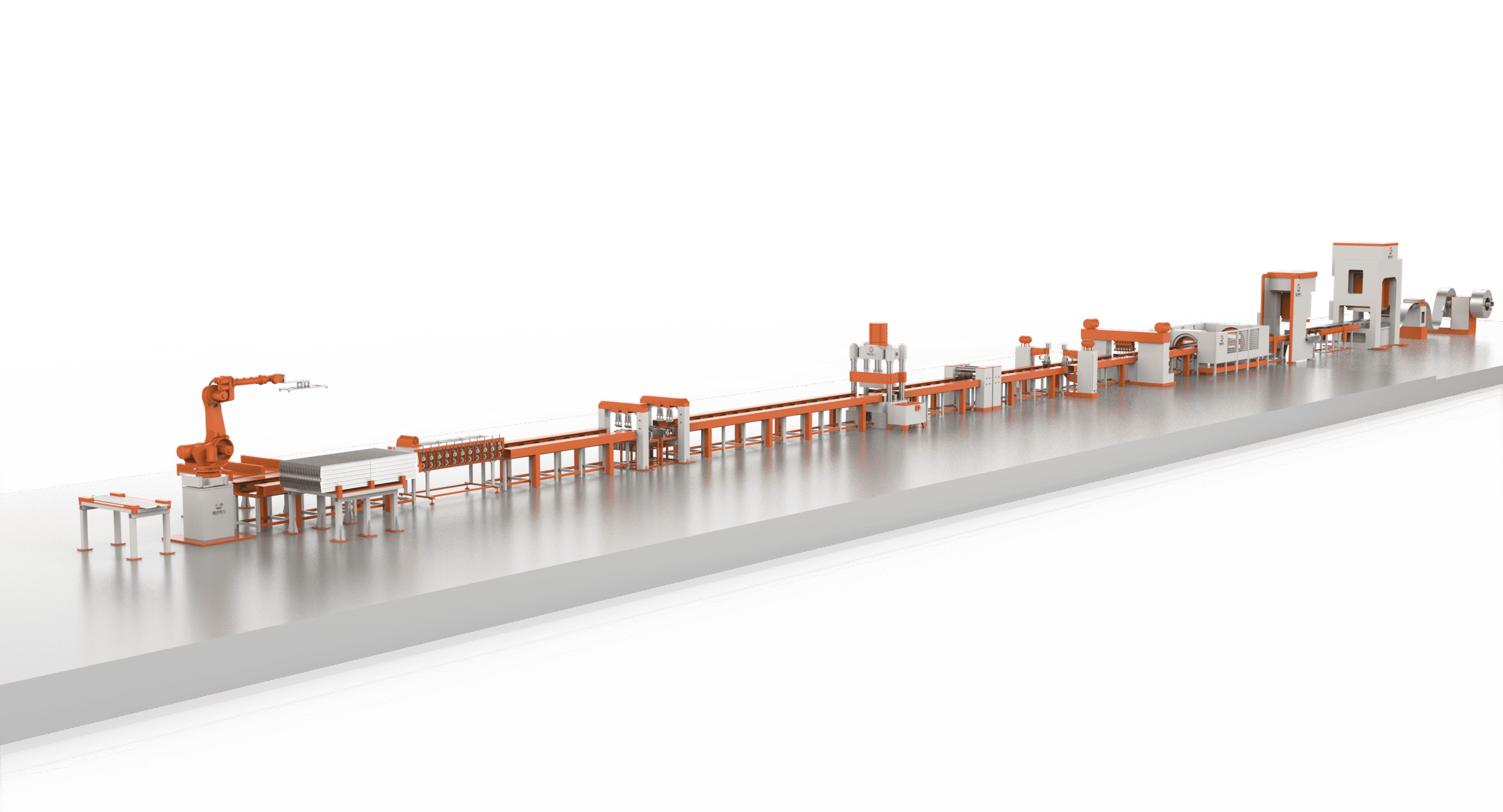

TRANSFORMER RADIATOR FIN LINE
TRANSFORMER FIN
The Transformer Radiator Production Line is essential for manufacturing high-quality transformer radiators used in power and distribution systems. A transformer radiator is a critical component designed to dissipate heat generated during transformer operation and maintain optimal operating temperatures, ensuring efficiency, longevity, and safety under heavy-load conditions.
Transformer radiators are precision-engineered heat exchangers, typically constructed from high-quality steel or copper fins and tubes to maximize surface area and heat transfer efficiency. The Transformer Radiator Production Line enables automated fin forming, welding, assembly, and testing processes, ensuring consistent quality and high production output for oil-filled transformers.
Widely used in power generation, transmission, and industrial electrical systems, these radiators help maintain safe operating temperatures and reduce the risk of insulation failure. With advanced automation and precision control, the Transformer Radiator Production Line improves manufacturing efficiency, reduces manual labor, and ensures reliable, repeatable production for large-scale industrial applications.
Key Features
- Designed to transfer heat effectively from transformer oil to ambient air.
- Made from robust steel, copper, or aluminum with corrosion-resistant coatings.
- Can be configured as single-pass, multi-pass, or sectional radiators for easy installation and maintenance.
- Suitable for tank-mounted, freestanding, or skid-mounted transformer installations.
- Maximizes surface area for improved heat transfer and airflow.
- Designed for easy cleaning, inspection, and oil circulation monitoring.
- Radiators can be tailored to transformer size, load rating, and cooling requirements.
SPECIFICATION
| Parameter | Specification |
|---|---|
| Center Height of Equipment | 1000 mm |
| Applicable Material Length | 800 – 4000 mm |
| Applicable Material Width | 460 – 535 mm |
| Applicable Material Thickness | 1+1 mm, 1.2+1.2 mm |
| Material Type | MS |
| Productivity | 50 pcs/h (2 m length) |
Related Products
Frequently Asked Questions
What you should know
What is a transformer radiator and why is it used?
A transformer radiator is a cooling component used in oil-filled transformers to dissipate heat generated during transformer operation. It helps maintain safe operating temperatures, improves transformer efficiency, and increases the service life of power transformers.
How does a transformer radiator cooling system work?
A transformer radiator works by transferring heat from the hot transformer oil to the surrounding air through radiator fins and tubes. This heat dissipation process helps prevent overheating and ensures reliable transformer performance.
What materials are used for manufacturing transformer radiators?
Transformer radiators are commonly manufactured using high-quality materials such as steel or copper to provide excellent heat transfer, durability, and resistance against operating conditions.
What are the applications of transformer radiators?
Far far away, behind the word mountains, far from the countries Vokalia and Consonantia, there live the blind texts. Separated they live in.
What is a transformer radiator production line?
A transformer radiator production line is an automated manufacturing system used for producing transformer radiator fins through processes such as fin forming, welding, assembly, and quality testing. It helps achieve accurate, consistent, and high-volume radiator production.
Can transformer radiator fin lines be customized according to requirements?
Yes, transformer radiator fin lines can be configured based on radiator size, material specifications, production capacity, and transformer cooling requirements to meet different industrial applications.
